Made From Your Sample or Dimensions
Bring us an existing gasket, template, drawing, CAD file or measurements. We can use the information to help reproduce the required shape and openings.
CUSTOM GASKET FABRICATION
Custom Gasket Fabrication & CNC Gasket Cutting in San Bernardino, CA
Precision-cut industrial gaskets produced from samples, drawings, CAD files or measurements using a wide range of gasket materials for replacement, maintenance and production applications.
IN-HOUSE DIGITAL GASKET CUTTING

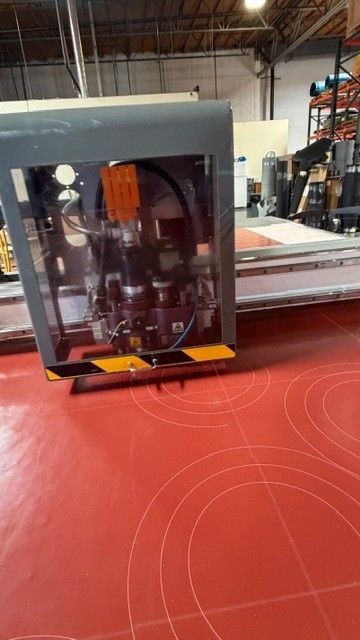

WATCH OUR ATOM FLASH CUTTER
Precision Digital Cutting Without Expensive Tooling
Our Atom Flash Cutter allows Industrial Rubber & Supply to manufacture precision custom gaskets directly from a sample, drawing, CAD file or customer-provided measurements.
Digital cutting is ideal for replacement gaskets, prototypes, complex profiles, bolt-hole patterns, custom shapes and production quantities without requiring a traditional die for every project.
Fast Turnaround
No custom cutting die required for many projects.
Precision Cutting
Clean, repeatable profiles and bolt-hole patterns.
Custom Shapes
Complex profiles and unique dimensions are possible.
One to Production
Useful for replacement parts and larger quantities.
MADE FOR YOUR APPLICATION
Why Choose Custom Gasket Fabrication?
Off-the-shelf gaskets do not always provide the dimensions, material compatibility or sealing performance required for a particular piece of equipment. Custom fabrication allows the gasket to be produced around the actual application.
01
02
Precision Fit & Dimensions
Proper dimensions, thickness, openings and bolt-hole placement help produce a gasket suited to the flange, housing, cover or equipment component.
03
Material Options for the Application
Gasket material can be selected around temperature, pressure, oils, fuels, chemicals, moisture, electrical properties and other operating requirements.

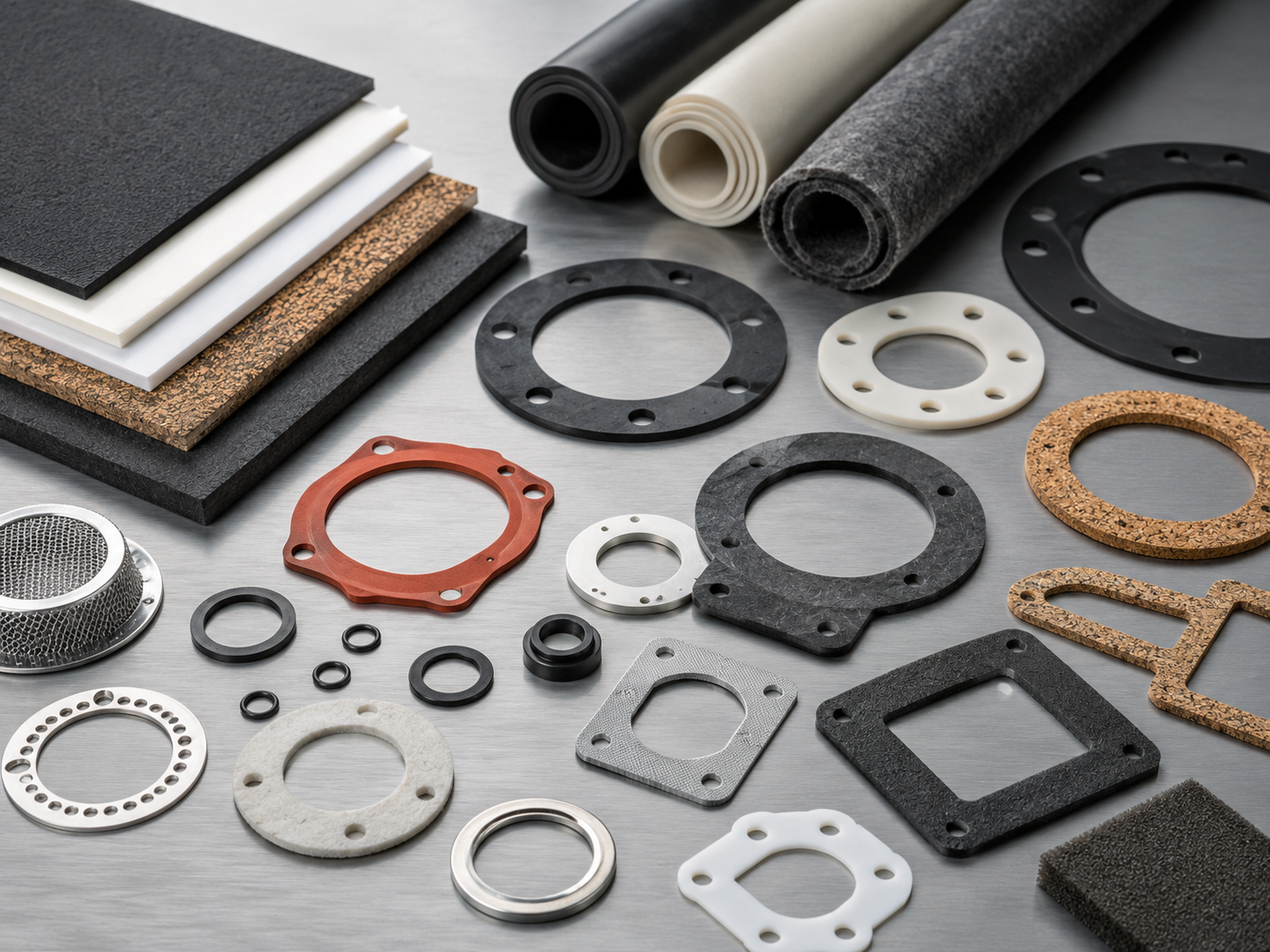

CUSTOM GASKET MATERIALS
Gasket Materials for Industrial Applications
Material selection plays a critical role in gasket performance. Temperature, pressure, chemical exposure, flexibility, compressibility, thickness, electrical properties and the surrounding environment can all influence which material is appropriate.

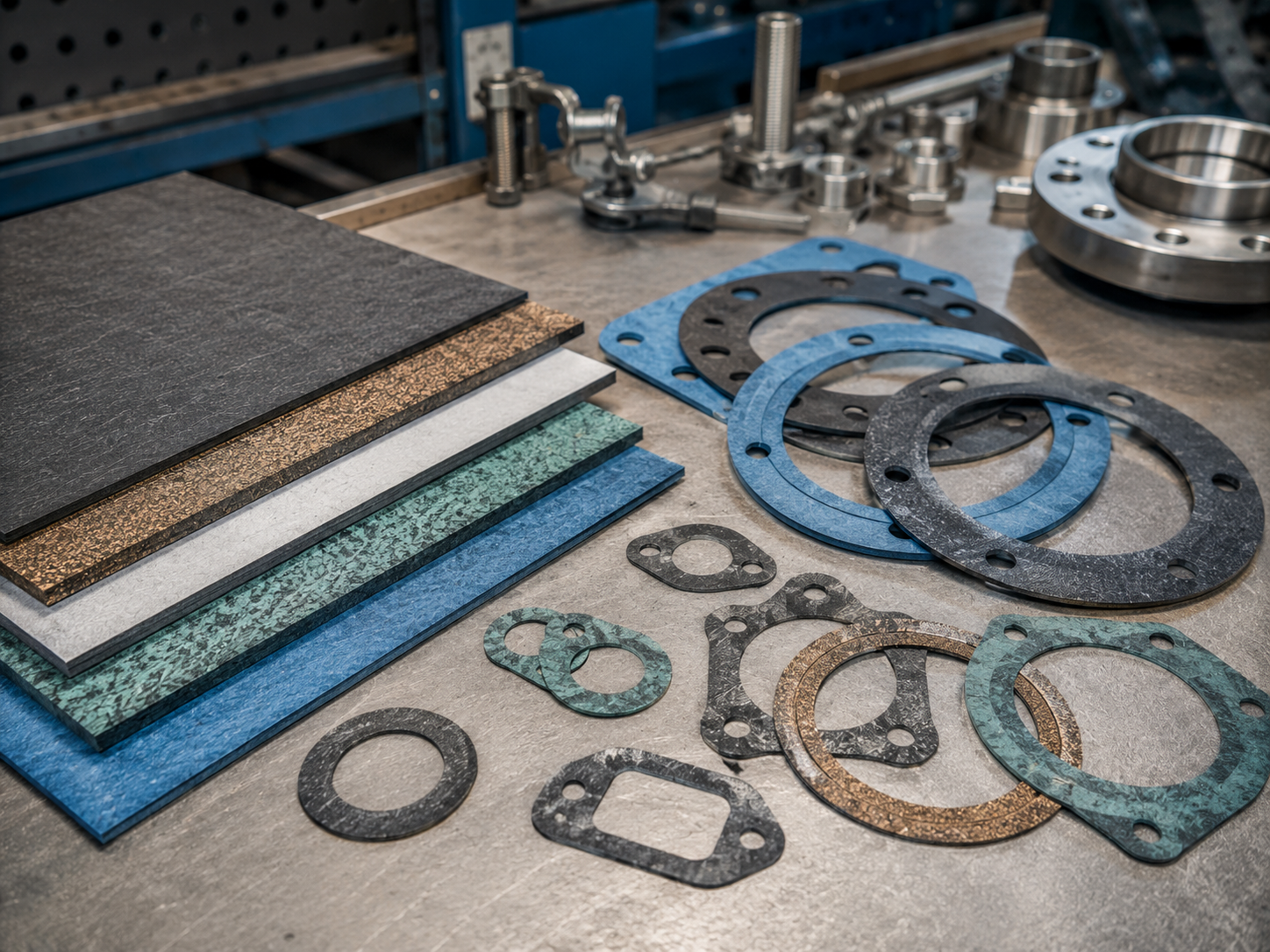

Non-Asbestos Gasket Material
Industrial gasket sheet used in applications involving heat, pressure, water, steam, oils, fuels and other fluids, depending on the specific grade.
- Pumps & compressors
- Flanges & piping
- Equipment covers
- Industrial maintenance

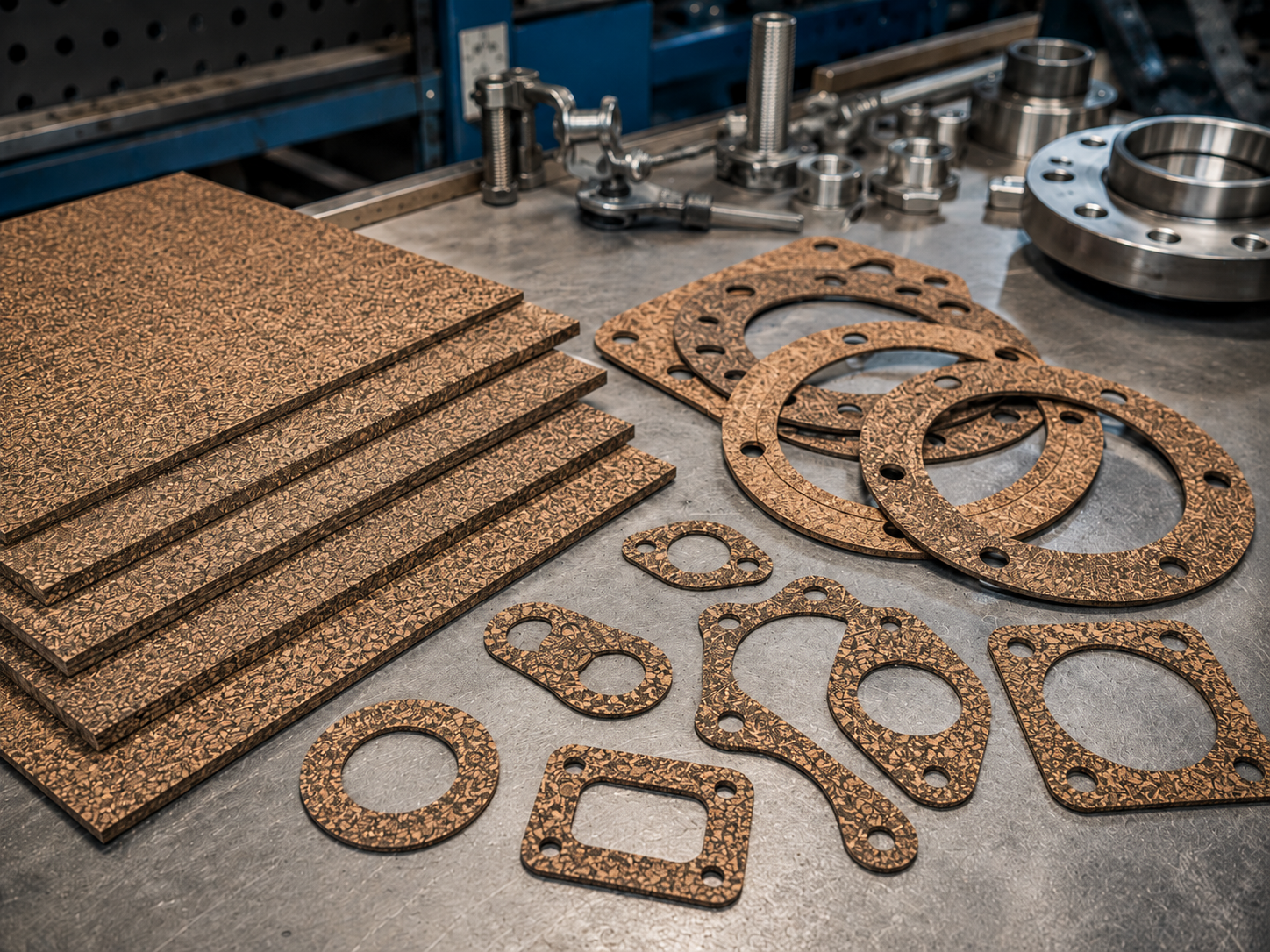

Cork Gaskets
Lightweight and compressible material useful where cushioning, flexibility and conformity to uneven mating surfaces are important.
- Inspection covers
- Electrical enclosures
- Light-duty machinery
- Equipment housings

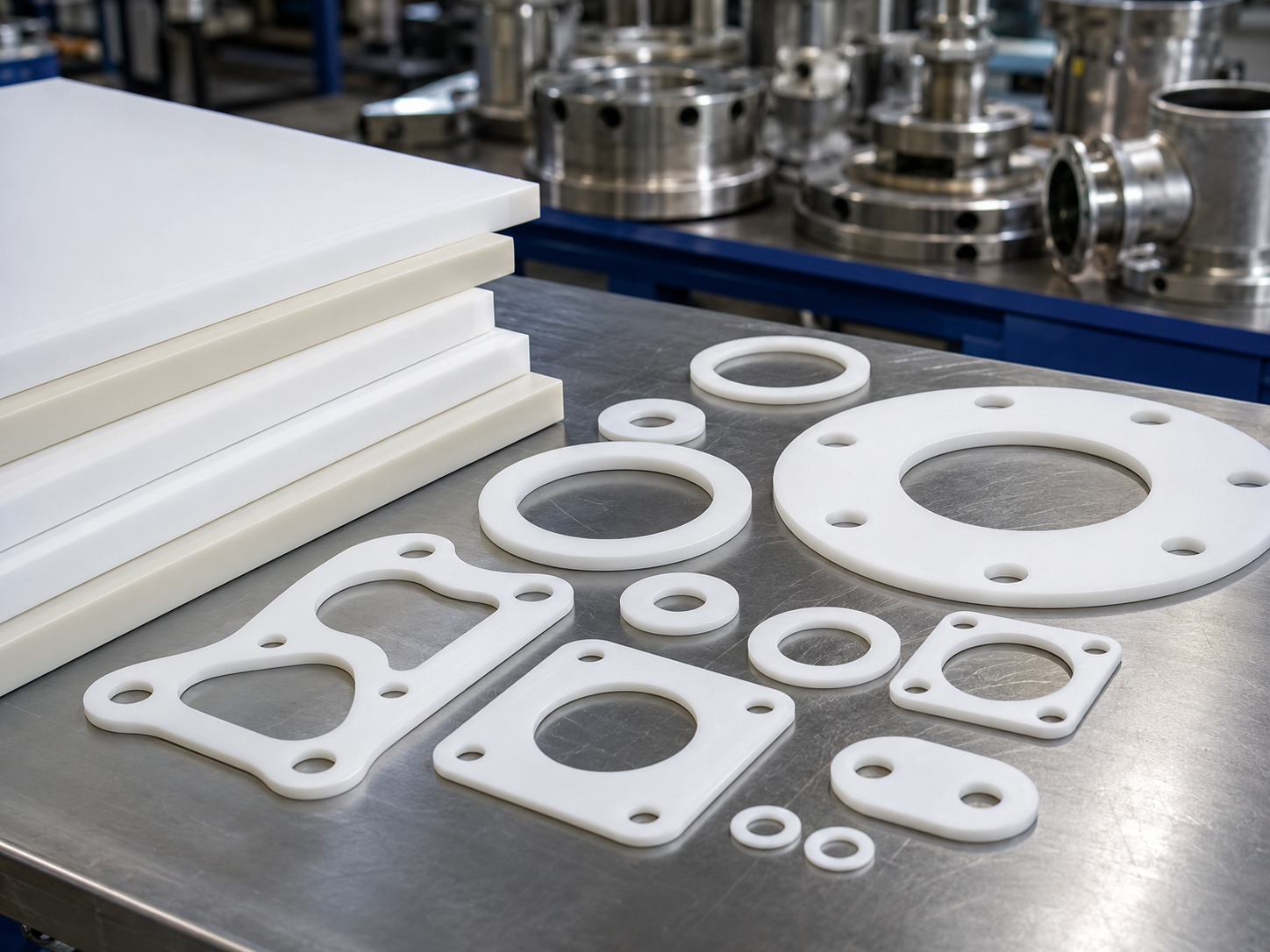

PTFE Gaskets
PTFE provides strong resistance to many chemicals and industrial fluids while performing across a broad range of operating conditions.
- Chemical processing
- Pumps & valves
- Piping systems
- Corrosive fluids

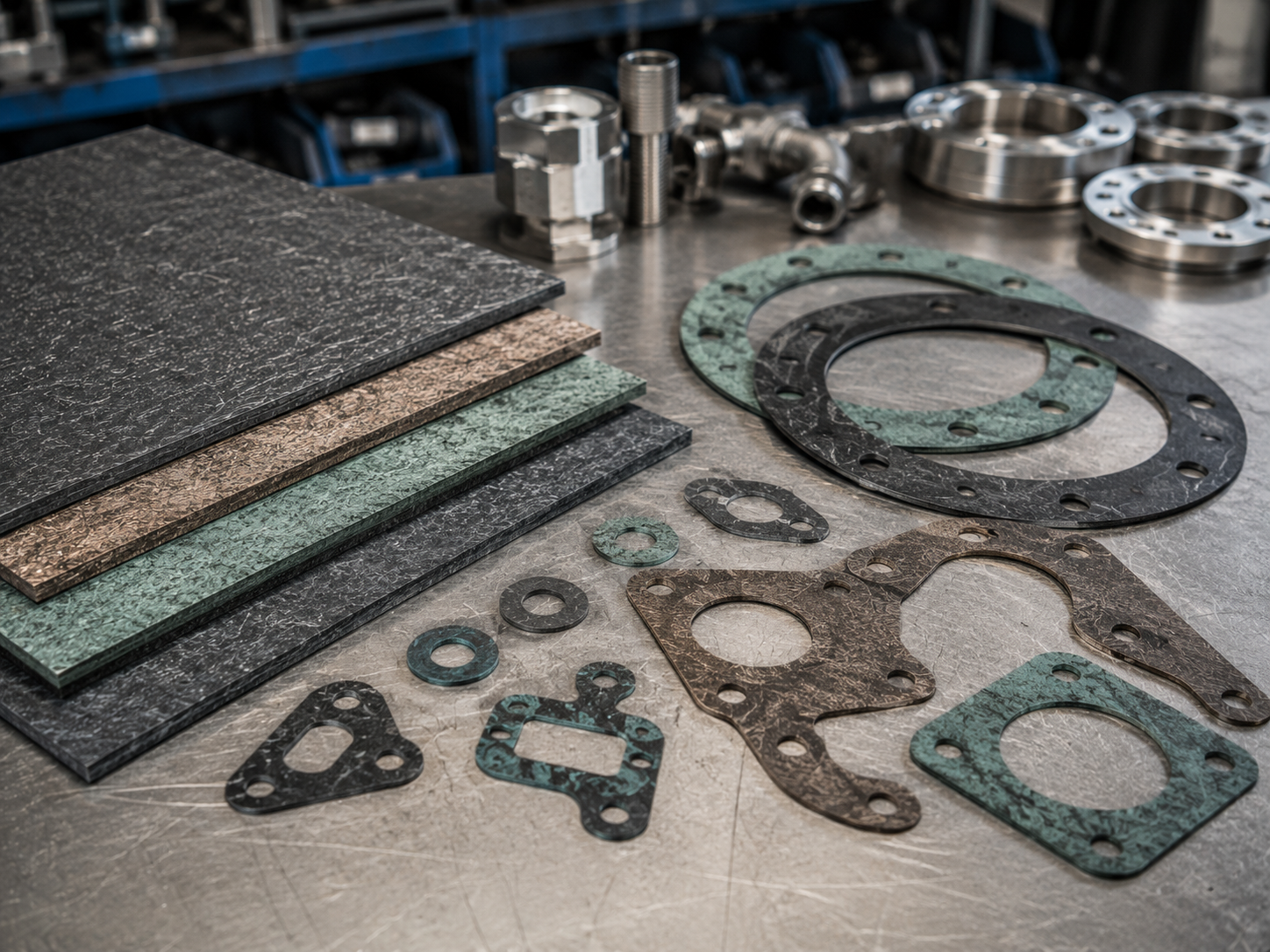

Fiber Gaskets
Compressed and vegetable fiber materials are frequently used for general industrial sealing involving oils, grease, gasoline, water and related fluids.
- Gear cases
- Transmission housings
- Pumps & compressors
- General machinery

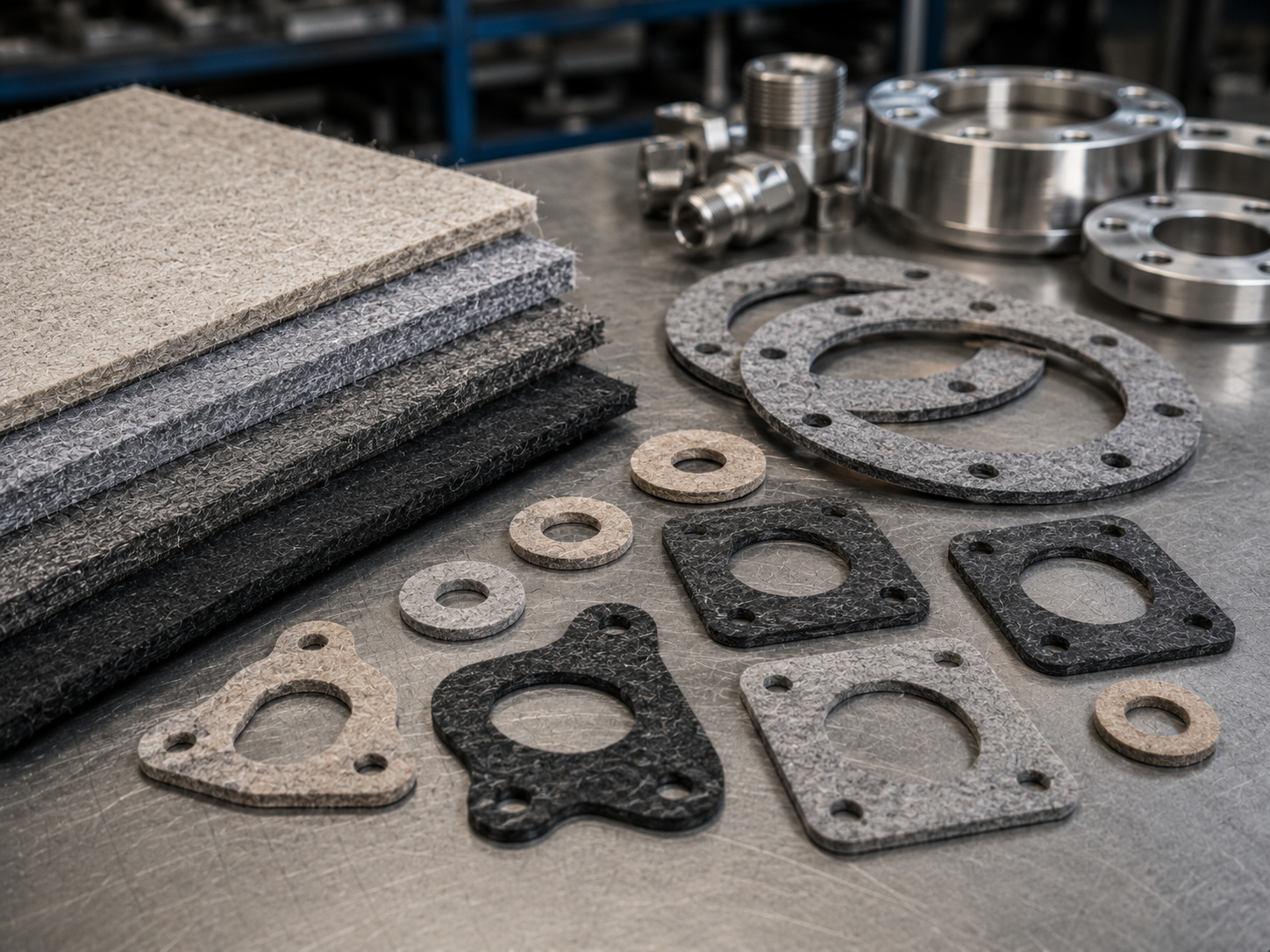

Felt Gaskets
Compressible felt is useful for sealing, cushioning, filtering, lubrication, sound reduction and dust protection applications.
- Dust seals
- Bearing protection
- Machinery padding
- Vibration reduction

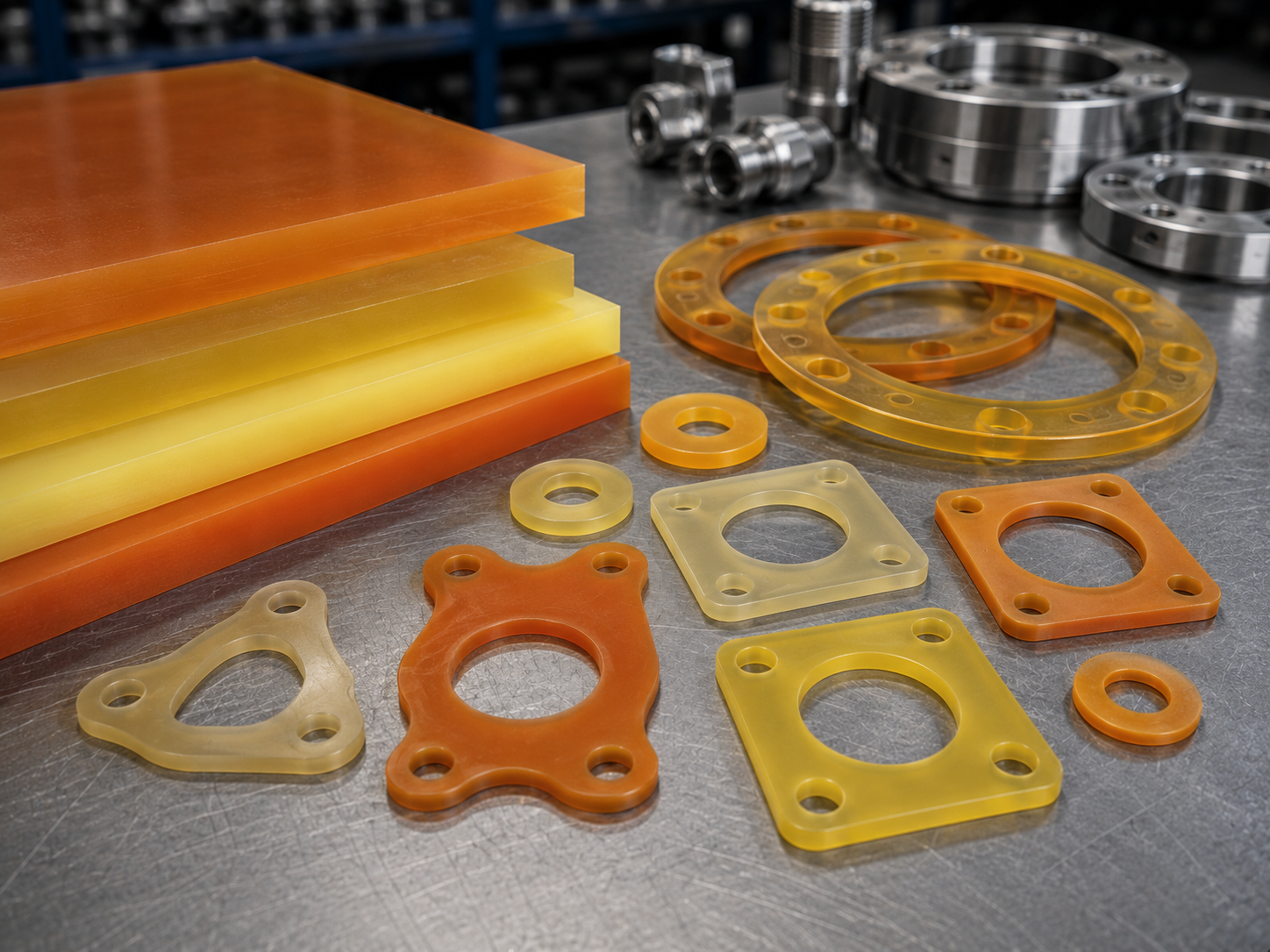

Urethane Gaskets
Urethane offers strong resistance to abrasion, tearing, impact and repeated flexing for demanding industrial environments.
- Material handling
- Scrapers & wipers
- Heavy machinery
- Abrasive environments

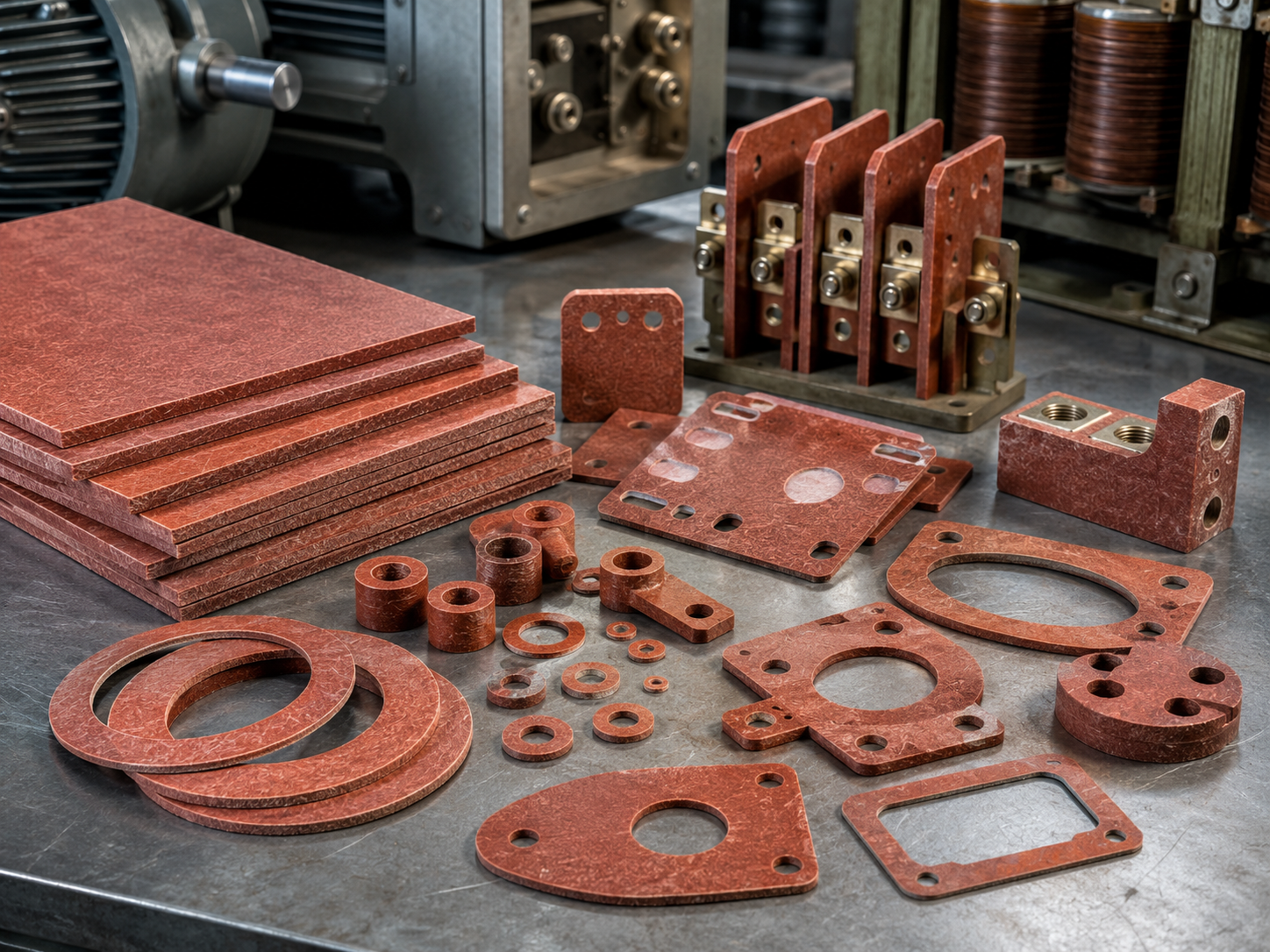

Fishpaper Gaskets & Insulators
Electrical-grade vulcanized fiber used where dielectric strength, mechanical protection and electrical insulation are required.
- Motors & transformers
- Electrical panels
- Battery assemblies
- Insulating barriers

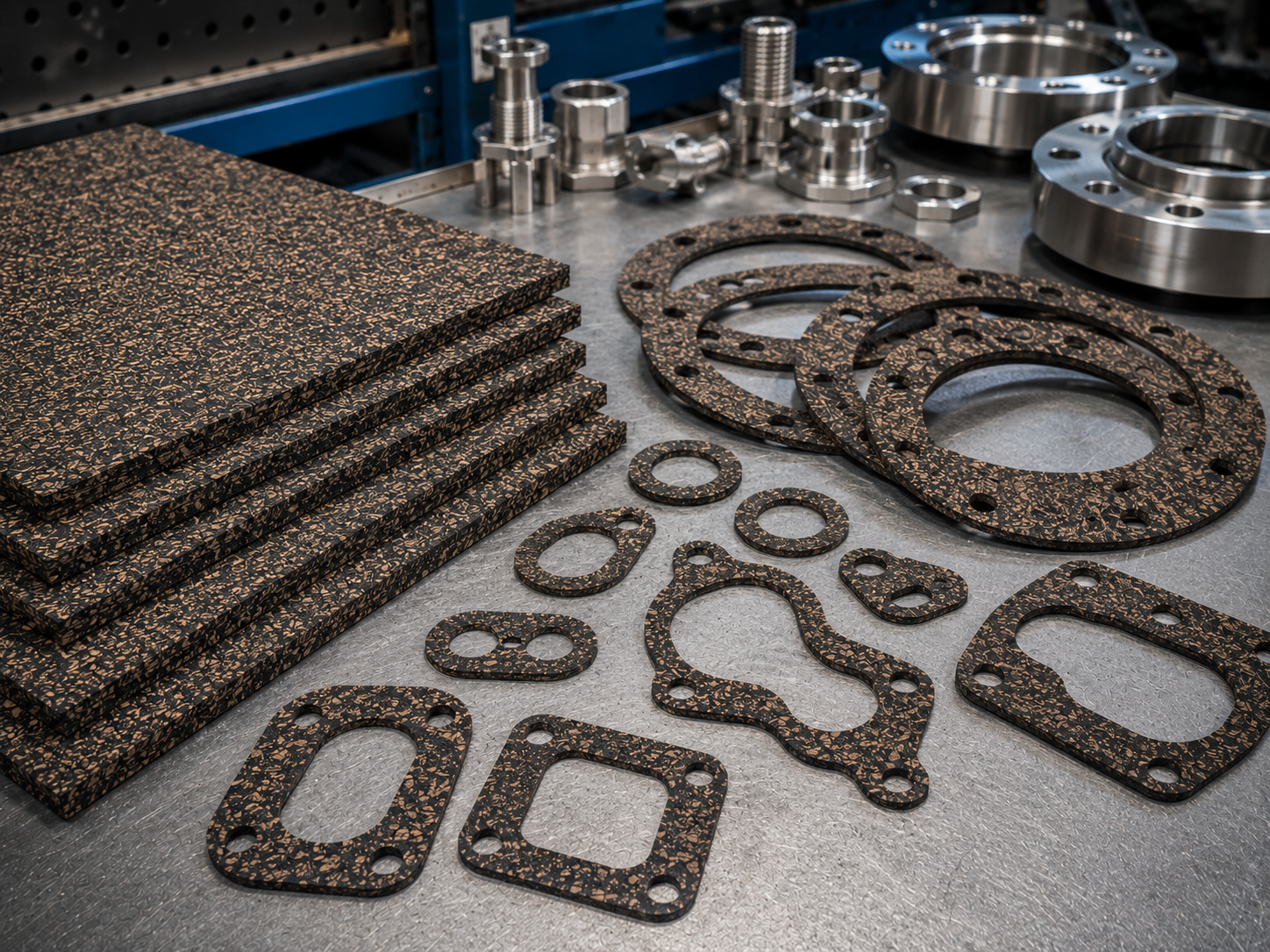

Cork-Rubber Gaskets
Cork-rubber combines cork compressibility with rubber flexibility and sealing properties for irregular surfaces and vibration-prone applications.
- Oil pans & covers
- Transmission components
- Electrical equipment
- Industrial enclosures

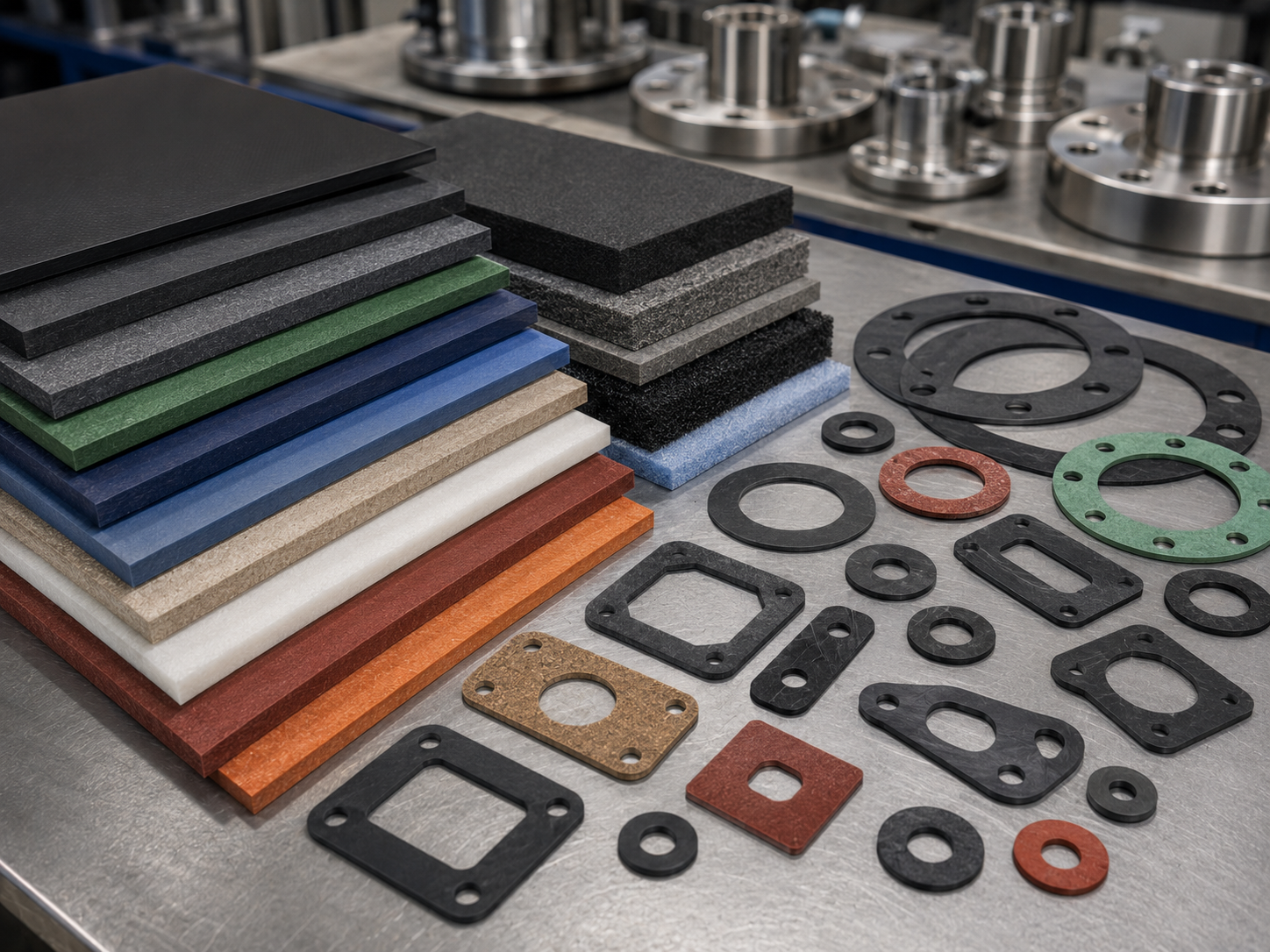

ADDITIONAL MATERIAL OPTIONS
More Materials for Specialized Requirements
Depending on the application, thickness, compound and grade, Industrial Rubber & Supply may also provide or fabricate gaskets from additional rubber, foam and specialty materials.
Material availability may vary by thickness, sheet size, compound and grade.
FROM SAMPLE TO FINISHED GASKET
Custom Fabrication Based on Your Specifications
The more information you can provide about the part and its operating conditions, the easier it is to evaluate the gasket dimensions and material requirements.
01
Provide the Part Information
Bring an existing gasket, template, drawing, CAD file, traced outline or measurements.
02
Review the Application
Consider thickness, temperature, pressure, chemicals, fluids and the intended operating environment.
03
Precision Digital Cutting
The Atom Flash Cutter produces the required profile, openings and bolt-hole pattern.
04
Finished Custom Gasket
Projects may range from individual replacement gaskets to repeat production requirements.
03
Precision Digital Cutting
Watch our Atom Flash Cutter in action
INDUSTRIES & APPLICATIONS
Custom Gaskets for Industrial Equipment & Maintenance
Custom gasket fabrication supports businesses that depend on pumps, valves, piping, machinery, electrical equipment, processing systems and other industrial components.
Manufacturing
Machinery, pumps, housings and production equipment.
Automotive & Fleet
Engines, transmissions, fuel systems and equipment.
Chemical Processing
Tanks, pumps, valves, piping and fluid systems.
Food & Beverage
Processing, packaging and compatible equipment applications.
Power & Electrical
Generators, motors, controls and insulating applications.
Water Treatment
Pumps, valves, piping, filtration and access covers.
Construction
Equipment, contractors, repairs and field maintenance.
Maintenance & Repair
Replacement parts for existing and older equipment.
CUSTOM GASKET FAQ
Frequently Asked Questions About Custom Gaskets
Common questions about custom gasket fabrication, materials, samples, digital cutting and ordering requirements.
What materials are available for custom gasket fabrication?
Material options include non-asbestos sheet, cork, PTFE, fiber, felt, urethane, fishpaper, cork-rubber, neoprene, nitrile, EPDM, silicone, sponge rubber and other industrial sheet materials. Availability depends on thickness, grade and compound.
Can you reproduce a gasket from an existing sample?
Yes. An existing gasket or physical template can provide useful information for reproducing the overall profile, openings and bolt-hole locations.
Can you manufacture gaskets from drawings or CAD files?
Yes. The Atom Flash Cutter can produce custom gasket profiles using digital information, drawings, CAD files, measurements and other specifications.
Can you make a single replacement gasket?
Custom digital cutting is well suited to one-off replacement gaskets as well as repeat and production quantities because a traditional cutting die may not be required.
How do I determine which gasket material I need?
Material selection depends on factors such as temperature, pressure, chemical or fluid exposure, thickness, flexibility, compressibility, electrical properties and the operating environment.
What is digital gasket cutting?
Digital gasket cutting uses computer-controlled equipment to cut gasket material from digital profiles rather than relying exclusively on traditional steel-rule or custom cutting dies.
How quickly can a custom gasket be produced?
Turnaround depends on material availability, quantity, gasket complexity and the information provided with the request. Digital cutting can eliminate the time required to produce a dedicated cutting die for many projects.
What information should I provide when requesting a gasket?
Helpful information includes dimensions, material or thickness requirements, operating temperature, pressure, chemicals or fluids involved, bolt-hole locations and the intended application.
CUSTOM GASKET FABRICATION
Need a Custom Gasket?
Bring us your gasket sample, drawing, CAD file, measurements or application details. Industrial Rubber & Supply can help evaluate material options and custom fabrication requirements for your project.
